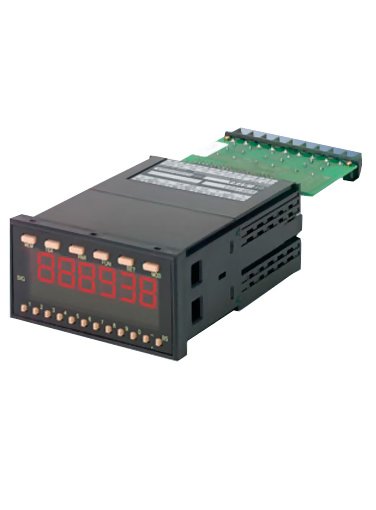

Shimpo DT-5TXR Panel Tachometer with Optional Output Modules



Price: $ 0.00

Shimpo DT-5TXR Panel Tachometer with Optional Output Modules
Panel Techometer with Optional Output Modules
Highly accurate ( 0.008% 1 digit) makes ideal for process control and analysis
Accepts up to two output modules allowing voltage, current, BCD, NPN & relay output combinations for control or remote process monitoring

The Shimpo DT-5TXR Panel Tachometer with Optional Output Modules with optional output Modules is an economical unit for speed and process time monitoring when combined with a compatible in-line sensor. Loaded with features found in more expensive units, the DT-5TXR Panel Meter is extremely versatile with selectable inputs. The DT-5TXR is fully scalable and possesses three selectable modes allowing it to measure RPM/linear speed/rate, elapsed time and process time. Each panel meter accepts a variety of signal inputs from any sensor providing an NPN, contact, sine wave, or square wave such as pulse generators, proximity sensors, photoelectric sensors, magnetic sensors and NPN OC transistors. Typical applications can range from machining operation timing, rate of change monitoring such as on a conveyor, elapsed time of oven curing etc. with any variety of compatible sensor inputs desired. The DT-5TXR panel meter also accepts various output modules, enabling it to output data for analysis, record keeping or assist in controlling the process through a separate control device. Up to two modules can be accepted simultaneously, offering an enormous number of combinations and options.

line
Features
line

  • Large 6 digit LED display plus two smaller 6 digit secondary displays allow easy viewing from greater distances
  • Highly accurate ( 0.008% 1 digit) makes ideal for process control and analysis
  • Selectable update time allows operator to speed up/slow down display changes to facilitate process
  • Selectable decimal point enables higher resolution display potential 1/8 DIN size panel cut out permits easy, industry-standard mounting
  • Great versatility with multiple sensor input capability in one unit: NPN open collector, contact and square or sine wave sensor inputs
  • Accepts up to two output modules allowing voltage, current, BCD, NPN & relay output combinations for control or remote process monitoring
  • IP66 front cover protection keeps water out, enables usage in compatible plant wash-down operations
  • Wide power range (85 264VAC, 50/60Hz) eliminates need for having to purchase and wire an additional power transformer. Low voltage models available
  • Scalable programming gives user the flexibility to set up and monitor virtually any process
  • DC power source output to power compatible sensors saves money by eliminating need for separate power supply
  • Front cover protection eliminates accidental bumping of keypad to incorrect program

line
Plug-In Modules
line

ModuleDescription
DOP-BCDBCD output module, 36 Pin Connection
DOP-CPTRRelay output module, terminal block connection
DOP-FVCAnalog output module (4-20mA & 0-1, 0-10, 1-5 VDC), 36-pin connection
DOP-FVTRAnalog output module (4-20mA & 0-1, 0-10, 1-5 VDC), terminal block connection
DOP-RMTRRatio input module, terminal block connection
DOP-TRCNPN open collector output module, 36 pin connection
DOP-TRTRNPN open collector output module, terminal block connection


line
Display
line

DesignationFunction
1Memory ButtonActivates memory function
2Memory IndicatorON when memory function is activated
3Teaching ButtonQuick scaling setup mode
4Teaching IndicatorON when in quick scaling setup mode
5Parameter ButtonFor parameter setup
6Function ButtonFor function setup
7Set ButtonSets parameters functions
8Mode ButtonMode selection
9Unit DecalArea for decal
10Primary DisplayDisplays units of measurement
11Secondary Display BSecondary display
12Backspace ButtonBackspace for corrections
13Negative Sign/Decimal Point ButtonNegative sign setting/decimal point shift
14Numeric ButtonFor various functions
15Secondary Display ASecondary display
16Signal IndicatorBlinking when signal is present
17Comparator IndicatorIndicates comparator condition


line
Specifications
line

Measuring Range10 - 99,999 rpm (at 1 p/r)
0.2 - 30,000 rpm (at 60 p/r)
Display RangeTachometer/Rate Meter:0 - 999999 with selectable decimal point
Elapsed Time:0:00:00 - 9:59:59 or 0.00 - 999.99 sec.
Process Time:0:00:00 - 0:59:59 or 0.00 - 999.99 sec.
ScalableYes (with outputs, see modules)
AccuracyTachometer/Rate Meter & Elapsed Time: 0.008 % 1 digit
Process Time: 0.008 % 1 digit
Display Update Time0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec.
Input No. of P/R1 to 9,999 (programmable)
Input Signal CharacteristicsNPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz - Sine wave input (magnetic pickup): max. frequency 10 kHz
Sensor Power Supply12 VDC (150 mA)
Power Requirement85 - 264 VAC (50/60 Hz) Optional (9 - 35 VDC at 1 W also available)
Ambient Temperature32 - 113 F (0 - 45 C)
Dimensions5.27" x 3.78" x 1.89" (134 x 96 x 48 mm)
Product Weight0.66 lb (300 g)
Package Weight0.95 lb (430 g)
Warranty1-Year
Included AccessoriesMounting adapters & screws, decal sheet


line
Related Products
line

MCS-655
Photo-Reflective Sensor

  • Incorporates a complimentary switching voltage output
related

line

MCS-625
Photo Reflective Sensor

  • The MCS-625 has an open collector output and requires a pull up resistor
related

line

MP-10
Magnetic Pick-Up Sensor

  • Pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole
related

line

LS-S50MLR
Photo Reflective Sensor

  • Visible Red Light Source
  • NPN or PNP Connection
related

line
Downloads
line

Shimpo DT-5TXR Panel Tachometer with Optional Output Modules - Instruction Manual

line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Accessories Price
DOP-BCDR BCD output module, 36 Pin Connection $135.00
DOP-CPTR Relay output module, terminal block connection $110.00
DOP-FVC Analog output module (4-20mA and 0-1, 0-10, 1-5 VDC), 36-pin connection $175.00
DOP-FVTR Analog output module (4-20mA and 0-1, 0-10, 1-5 VDC), terminal block connection $150.00
DOP-RMTR Ratio input module, terminal block connection $140.00
DOP-TRC NPN open collector output module, 36 pin connection $110.00
DOP-TRTR NPN open collector output module, terminal block connection $110.00
