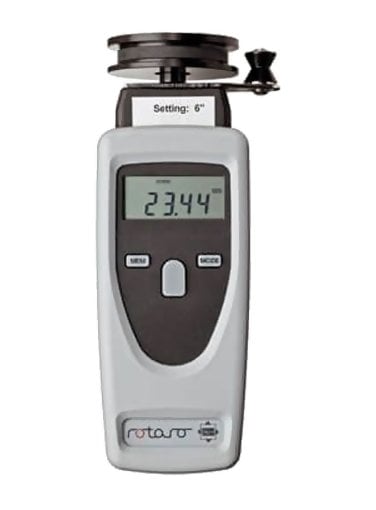

Checkline CDT-2000HD-TE Wire, Cable, and Rope Speed Meter / Combination Tachometer kit



Price: $ 595.00

Checkline CDT-2000HD-TE Wire, Cable, and Rope Speed Meter / Combination Tachometer Kit
Length of wires
Cables and ropes up to 8 mm diameter, e.g.in elevator applications

Checkline CDT-2000HD-TE allows the device to measure speed and length of wires, cables and ropes up to 8 mm diameter, e.g.in elevator applications. The Checkline CDT-2000HD-TE is just as useful when setting up plants and machinery as during service jobs, monitoring manufacturing processes or in development laboratories.

Example applications include measuring the rotational speeds of engines, pumps and turbines, as well as of mixers, centrifuges and conveyors; it can also measure the velocities and lengths of all kinds of threads, sheets and belts.


line

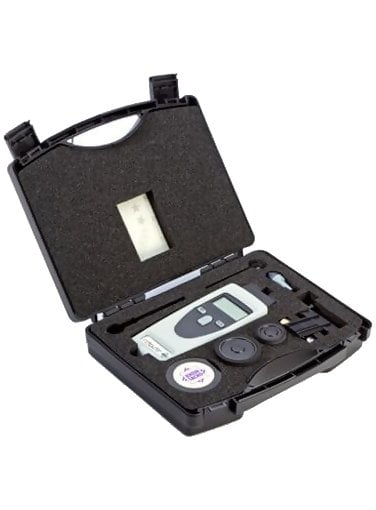

Kit Contents
line

  • CDT-2000HD-TE Wire, Cable, and Rope Speed Meter
  • Wire
  • Cable
  • Rope Speed Adaptor
  • Slide-In Tachometer Contact Adapter
  • 6" & .1m Surface Speed Wheels
  • Cone Tip
  • Funnel Tip
  • Extension Shaft
  • Reflective Tape
  • Two (2) AA Batteries (1.5 V)
  • Calibration Certificate
  • Operating Instruction Manual
  • Carrying Case


line
Features
line

  • Measurement of wires, cables and ropes up to 8 mm
  • Used for elevator applications and similar applications for measure cable speed and length
  • Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
  • Total Length can be measured in feet, meters, inches.
  • Wrapper roller mounted beside main roller insures adequate contact to eliminate slippage
  • Designed and fabricated in Germany
  • Includes Traceable Calibration Certificate


line
Specifications
line

Measurement DiameterUp to 8mm
Resolution.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999
Accuracy 0.02% of reading or 1 digit
Display5 - Digit LCD, 10mm high
Decimal PointAutomatic
Memory SystemMaximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement SystemNon-Contact: Visible LED light beam
Contact: Contact adapter
Engineering UnitsRPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, meters
Sensing DistanceUp to 24 inches (60 cm)
Display Update Time0.5 seconds or one measuring
Auto Power OffAfter 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life40 hours continuous use
Battery2 AA (1.5 V) or rechargeable
Weight6 ounces (170 grams)
Housing MaterialABS Plastic housing with removable protective rubber shell
Operating Temperature32 to 122 F (0 to 50 C)
Storage Temperature-4 to 150 F (-20 to 70 C)
Accessories includedContact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional AccessoriesShaft extension, 3.15 inches (80 mm)
Warranty5 years
Calibration CertificateIncluded


lineRangesline

RPMNon-Contact: 1.00 - 99,999 rpm
Contact: 1.00 - 19,999 rpm
Surface Speed0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/min
Length0.01 - 99,999 feet
0.02 - 99,999 meters
1.0 - 99,999 inches


line
