Shimpo DT-105A-12CBL Hand-Held Tachometer / Cable Speed Meter - LCD Display

Price: $ 515.00

Shimpo DT-105A-12CBL Tachometer for Elevator Cable Speed
Tachometer for Elevator Cable Speed, Belt Speed and other applications

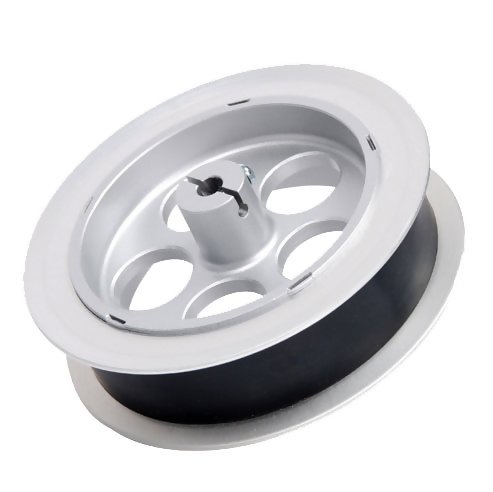

Supplied with 12 inch circumference grooved wheel

Measures ft/min, ft/sec, m/min, m/sec, mph and more

The DT-105A-12CBL is designed to measure elevator cable speed in feet per minute, meters per minute and other measuring units. It is supplied with a rugged 12 circumference wheel with large flanges to keep the cable in contact with the surface. Delivering superior performance and accuracy over more conventional flat surface wheels

Employing a non slip rubber contact surface, the wheel adds safety and accuracy while measuring speeds on Elevator governor cables, wire and cable reels, extruded tubing and many other applications


  • Built-in memory for last, maximum, minimum and 10 separate readings
  • Rugged cast aluminum housing
  • Includes Traceable calibration Certificate
  • LCD Version for use in sunlight and for longest battery life (DT-105A-12CBL)
  • LED version for use in poorly lit or dark environments (DT-107A-12CBL)


Display Range0.10 to 25,000 rpm with floating decimal
Accuracy0.10 to 999.99 rpm: 0.06 rpm
1,000.0 to 9,999.9 rpm: 0.6 rpm
10,000 to 25,000 rpm: 0.006% rpm
DisplayDT-105A:(LCD MODEL) 5 digit 0.47" (12mm) high
DT-107A:(LED MODEL) 5 digit 0.4" (10mm) high
Measurement UnitsPer Second:Inches, Centimeters (optional, inquire)
Per Minute:Revolutions, Inches, Feet, Yards, Meters
Per Hour:
Miles, Kilometers (optional, inquire)
Total:Revolutions, Inches, Feet, Yards, Centimeter, Meters
Memory System13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements)
DetectionOptical coupler, 60 pulses/rev.
Update Time1 second (typical)
Over-Range IndicatorFlashing numerals
Batteries2 - 1.5 V AA
Battery LifeApprox. 65 hrs. (DT-105A)
Life: Approx. 40 hrs. (DT-107A)
Operating Temp32 to 113 F (0 to 45 C)
Accessories Included2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions
Product Weight0.9 pounds (400 grams) (without wheel)
Dimensions7.3" L x 2.4" W x 1.8" H
Warranty2 years
Country of OriginTaiwan

Related Products


  • 12" Circumference Wheel for elevator cable, belts and other applications


DT-105A - DT-107A
Hand-Held Contact Tachometer

  • Built-in memory for last, maximum, minimum and 10 separate readings
