Checkline CDT-2000HD Handheld Laser Tachometer, Non-Contact 1.00 - 99,999 rpm / Contact: 1.00 - 19,999 rpm



Price: $ 285.00

Checkline CDT-2000HD Handheld Laser Tachometer
Measuring Range:Non-Contact- 1.00 - 99,999 rpm | Contact- 1.00 - 19,999 rpm
Display Type:LCD
Housing Material:Plastic with rubber protective shell
Warranty: 5 years

The Checkline CDT-2000HD Combination Portable Tachometer combines the best features of both contact and non-contact models to accurately measure RPM, surface speed and length.

When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The CDT-2000HD can be up to 24 inches away from the reflective tape target that is affixed to the rotating element. In the contact operating mode, the speed is sensed by directly contacting a rotating device using one of the contact adapters supplied with the instrument.

The CDT-2000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a variety of machinery and material handling applications.

A non-contact only version, the CDT-1000HD, is also available.

Also known as Fluke 931, Testo 470, Rotaro, TACH-20.


line
Kit Contents
line

  • CDT-2000HD Handheld Laser Tachometer
  • Slide-In Contact Adapter
  • 6" Universal Surface Speed Wheel
  • Cone Tip Adapter
  • Reflective Tape
  • Two (2) AA Batteries (1.5 V)
  • Operating Instruction Manual
  • Carrying Case


line
Features
line

  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm
  • Accuracy of 0.02% with a resolution of 0.01 RPM
  • Includes DAkkS Traceable calibration Certificate
  • Built-in memory stores maximum, minimum, average and last reading for recall to the display
  • NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection
  • NEW - Now includes larger 6 inch circumference Surface Speed Wheel standard
  • NEW - Can be set for use with 2 optional-sized surface speed wheels (12 inch or 10 cm circumference)


line
Applications
line


line
Specifications
line

RPMNon-Contact: 1.00 - 99,999 rpm
Contact: 1.00 - 19,999 rpm
Surface Speed0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/min
Length0.01 - 99,999 feet
0.02 - 99,999 meters
1.0 - 99,999 inches
Resolution.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999
Accuracy 0.02% of reading or 1 digit
Display5 - Digit LCD, 10mm high
Decimal PointAutomatic
Memory SystemMaximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement SystemNon-Contact: Visible LED light beam
Contact: Contact adapter
Engineering UnitsRPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, meters
Sensing DistanceUp to 24 inches (60 cm)
Display Update
Time
0.5 seconds or one measuring
Auto Power OffAfter 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life40 hours continuous use
Battery2 AA (1.5 V) or rechargeable
Weight6 ounces (170 grams)
Housing MaterialABS Plastic housing with removable protective rubber shell

Operating Temp

32 to 122 F (0 to 50 C)
Storage Temp-4 to 150 F (-20 to 70 C)
AccessoriesContact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional AccessoriesShaft extension, 3.15 inches (80 mm)
Warranty5 years


line
Ranges
line

RPM
Optical1-99,999
Mechanical1-19,9999

Surface Speed6"* (Standard)12"*0.1 m*
m/min0.10-1,5240.40-609.60.10-1,999
ft/min0.40-5,0000.40-2,0000.40-6,550
in/min4.00-60,0004.00-24,0004.00-78,700
m/sec0.10-25.400.10-10.160.10-33.30
ft/sec0.10-83.330.10-33.330.10-109


Total Length

Meters99,999
Feet99,999
Inches99,999
*Note: Sizes listed are the circumference of measuring wheel


lineLCD Displayline

  • Units of Measure Indicators show the user-selected units of measure.
  • Low Battery Indicator alerts the operator if the batteries are low.
  • On-Target Indicator confirms that the measurements are reliable.
  • Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.


lineRelated Productsline

CDT-1000HD Non-Contact Tachometer

  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm

line

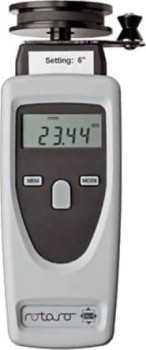

CDT-2000HD-TE Wire, Cable, and Rope Speed Meter

  • Measurement of wires, cables and ropes up to 8 mm
  • Used for elevator applications and similar applications for measure cable speed and length

line

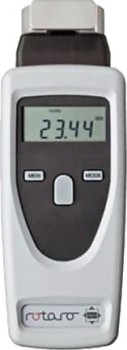

CDT-2000HD-TW Welding Wire Speed Meter
