DT-207LR-12 Contact / Non-Contact Tachometer with LED Display and 12 in Circumference Wheel



Price: $ 340.00

DT-205LR DT-207LR Handheld Tachometer NSN 6680-01-378-6490

Measuring Range:

  • Non-Contact - 1.00 - 99,999 rpm
  • Contact - 1.00 - 25,000 rpm

Housing Material:Metal
Warranty:2 Years

DT-205LRLCD Display with 6" Circumference Measuring Wheel
DT-205LR-12LCD Display with 12" Circumference Measuring Wheel
DT-207LRLED Display with 6" Circumference Measuring Wheel
DT-207LR-12LED Display with 12" Circumference Measuring Wheel

The DT-205LR & DT-207LR combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation.

NSN 6680-01-378-6490

line
Features
line

  • High-precision laser measures from distances up to 14 feet
  • LCD Version for use in sunlight and for longest battery life
  • LED version for use in poorly lit or dark environments
  • Includes 6" circumference surface speed wheel
  • Built-in memory for last, maximum, minimum and 10 separate readings
  • Includes Traceable calibration Certificate
  • DT-205LR NSN: 6680-01-378-6490

line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ

line

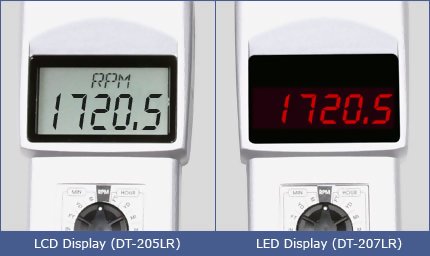

LCD Display vs LED Display
line

ABQ

line

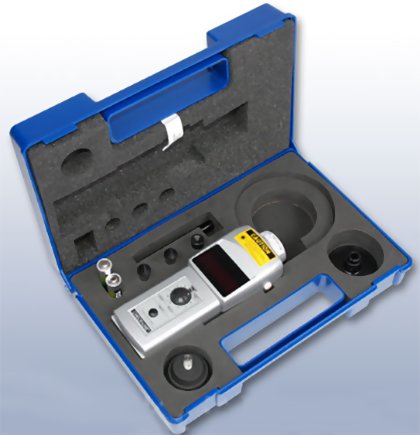

Complete Kit
line

All models are supplied as a complete kit including the tachometer, reflective tape, screw-in contact adapter, 2 cone tips, funnel tip, shaft extension, surface speed wheel, two AA batteries and an operating instruction manual - all supplied in a foam-fitted carrying case.

Note:On DT-205LR-12 and DT-207LR-12 models 12" circumference wheel is supplied instead of 6" version

complete kit

line
Specifications
line

Measuring RangeNon-Contact- 6 to 99,999 rpm
Contact- 0.8 to 25,000 rpm
Accuracy6 to 8,299 rpm: 1 rpm
8,300 to 24,999 rpm: 2 rpm
25,000 to 99,999 rpm: 0.006% rpm
ResolutionNon-Contact Mode: 1 RPM
Contact Mode: 0.1 RPM
DisplayDT-205LR:(LCD MODEL) 5 digit 0.47" (12mm) high
DT-207LR:(LED MODEL) 5 digit 0.4" (10mm) high
Measurement UnitsPer Second:Inches, Centimeters (optional, inquire)
Per Minute:Revolutions, Inches, Feet, Yards, Meters
Per Hour:
Miles, Kilometers (optional, inquire)
Total:Revolutions, Inches, Feet, Yards, Centimeter, Meters
Measuring Distance14 feet (4.2 m) maximum
DetectionLaser Diode, Class II
Memory13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements)
Over-Range IndicatorFlashing numerals
Update Time1 second (typical)
Batteries2 - 1.5 V AA
Battery LifeDT-205LRApprox 40 hrs
DT-207LRApprox 25 hrs
Low Voltage IndicatorDT-205LRFlashing "LO BAT" display
DT-207LR"B" display
Operating Temp32 to 113 F (0 to 45 C)
ConstructionDie-cast aluminum housing
Weight0.8 pounds (365 grams)
Dimensions6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)
Warranty2 years
