Checkline CDT-1000HD Handheld Laser Tachometer, Non-contact, 1.00-99.999 rpm

Price: $ 180.00

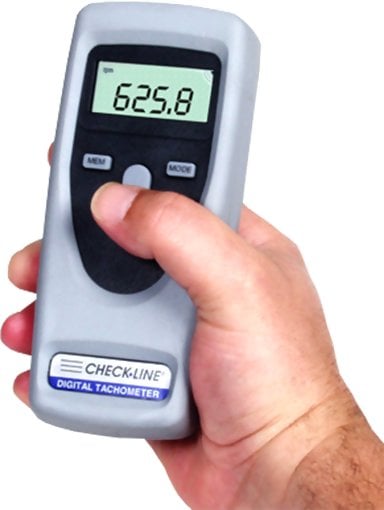

Checkline CDT-1000HD Handheld Laser Tachometer
Measuring Range:1.00 - 99,999 rpm
Display Type:LCD
Housing Material:Plastic with rubber protective shell
Warranty: 5 years

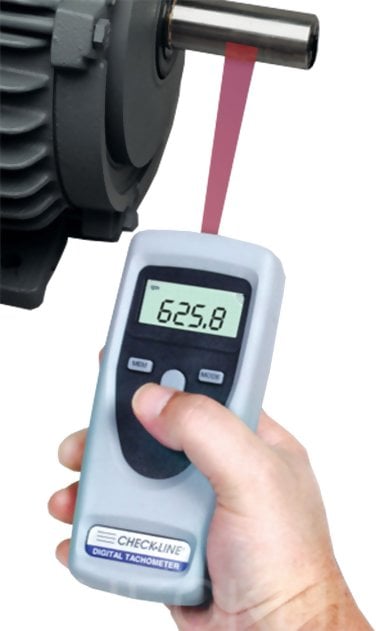

The Checkline CDT-1000HD Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000HD can be up to 24 inches (60 cm) away from the small piece of reflective tape that is affixed to the rotating element.

The Checkline CDT-1000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

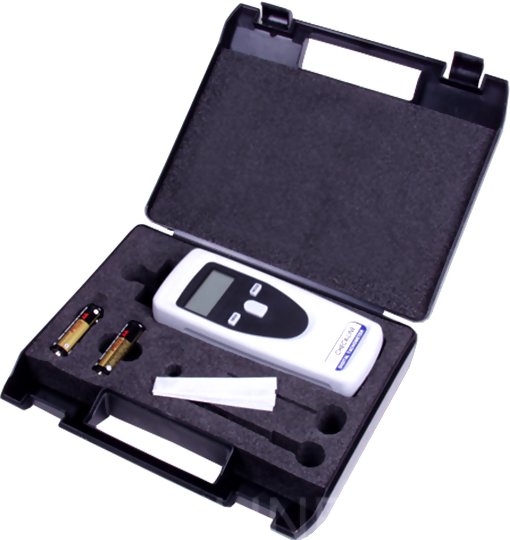

Kit Contents

  • CDT-1000HD Handheld Laser Tachometer
  • Reflective Tape
  • Two (2) AA Batteries (1.5 V)
  • Operating Instruction Manual
  • NIST certificate
  • Carrying Case


  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm
  • Accuracy of 0.02% with a resolution of 0.01 RPM
  • Includes NIST calibration Certificate
  • Built-in memory stores maximum, minimum, average and last reading for recall to the display
  • NEW- Molded Rubber Shell Provides Additional Physical & Environmental Protection

LCD Display:

  • Units of Measure Indicatorsshow the user-selected units of measure
  • Low Battery Indicator alertsthe operator if the batteries are low
  • On-Target Indicatorconfirms that the measurements are reliable
  • Memory Indicatorsare illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing


Measuring Range1.00 - 99,999 rpm
Resolution0.01 from 0 - 100
0.1 from 100 - 1,000
1 from 1000 - 99,999
Display5 - Digit LCD, 10mm high
Accuracy 0.02% of reading or 1 digit
Decimal PointAutomatic
Memory SystemMaximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement SystemVisible LED light beam
Sensing DistanceUp to 24 inches (60 cm)
Display Update
Ambient: -20 to 120 F (-30 to 50 C)
Material: 0 to 200 F (-20 to 100 C)
Special high temperature probes are optionally available
Auto Power OffAfter 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life40 hours continuous use
Battery2 AA (1.5 V) or rechargeable
Weight6 ounces (170 grams)
Operating Temp32 to 122 F (0 to 50 C)
Storage Temp-4 to 150 F (-20 to 70 C)
Accessories10 Strips of 1/2 x 4 inch reflective tape
Warranty5 Years


CDT-1000HD Handheld Laser Tachometer - Data Sheet
CDT-1000HD Handheld Laser Tachometer - Instruction Manual
CDT-1000HD Handheld Laser Tachometer - Certificate

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline CDT-1000HD Handheld Laser Tachometer, Non-contact, 1.00-99.999 rpm $180.00
Accessories Price
CDT-TAPE - 10 Strips, 1/2 in x 4 in Reflective Tape $10.00
205TS-4 - Qty 4 Refl. Tab Sheets 35 1/2 in x 1/2 in $18.00
205TS - Reflective Tab Sheet 35 1/2 in x 1/2 in $15.00
BATT-RC4AA-WC - 4-pack 2300mAh AA Ni-MH Rechargeable Batteries and Charger Kit $35.00
ISO-17025-TS Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate $225.00
CDT-CC Carrying Case for CDT-1000HD/2000HD $30.00
