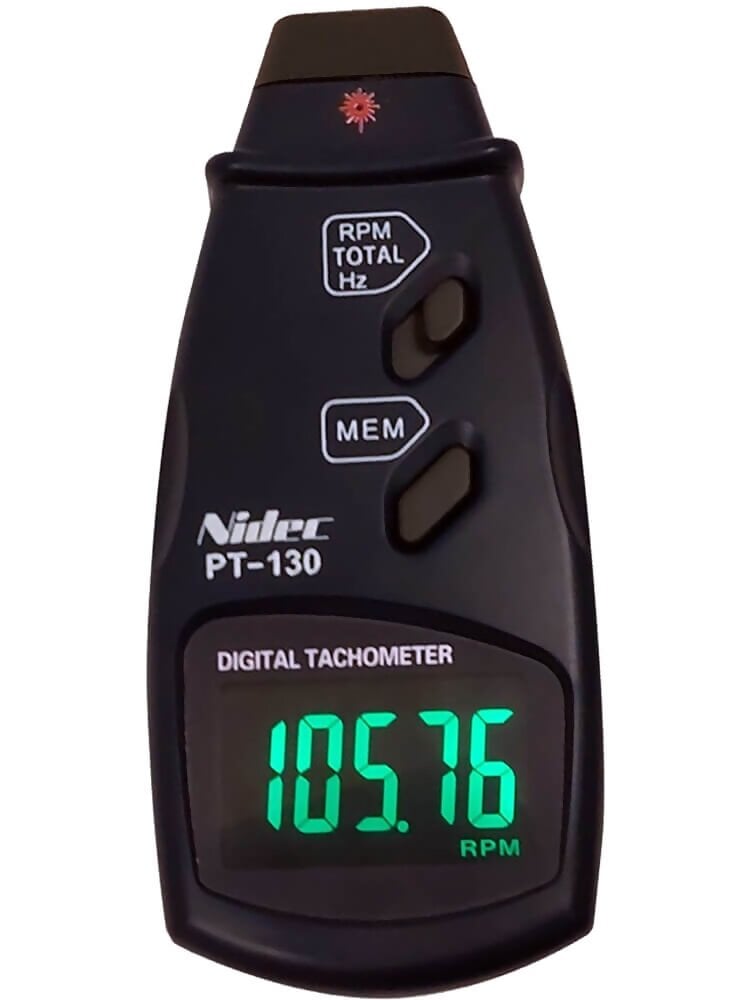

Shimpo PT-130 Non-Contact Laser Tachometer with bright LED display
Price: $ 144.00
Automatically records Maximum, Minimum, Last Value as well as up to 96 data points during testing
The Shimpo PT-130 Non-Contact Digital Tachometer is ideal for rotational machine inspection and process speed analysis. The PT-130 possesses a large, bright LED screen that provides clear viewing in any environment. Users can obtain results in either Hertz or RPM, as well as Total counts with the simple selection switch. During testing, the unit automatically saves maximum, minimum, and last recorded values and up to 96 logged data readings. The compact, lightweight PT-130 Tachometer is supplied with reflective tape, 3 AAA batteries, and a protective carrying case.

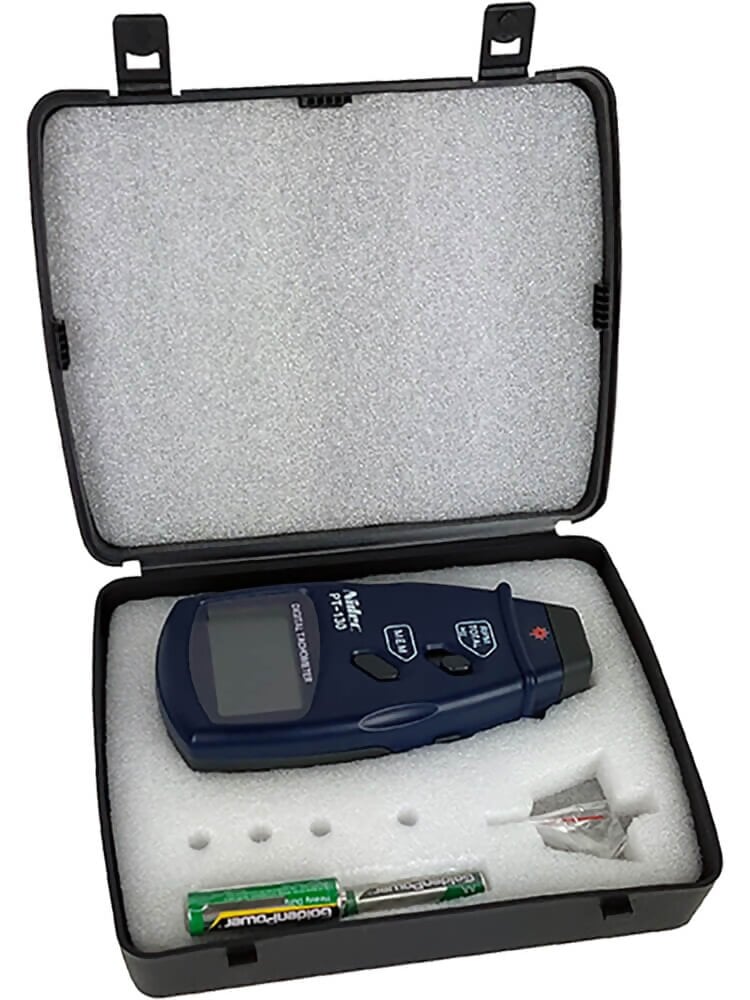

Kit Contents
- Shimpo PT-130 Non-Contact Digital Tachometer
- Reflective Tape
- 3 AAA batteries
- Carrying Case
|  |
Features
- Measures RPM, Hz or Total by simple adjusting selector switch
- Large, bright LED for easy viewing in both bright and dim environments
- Automatically records Maximum, Minimum, Last Value as well as up to 96 data points during testing
- Calibration Certificate Not Included, OPTIONAL
Specifications
| Range | 2.50-99,9999 RPM
0.05-999.99 Hz
1-10,000 Count | | Resolution | 0.01(2.50-999.99 RPM)
0.1 RPM (1000.0-9999.9 RPM)
1 RPM (10,000 RPM and up)
0.01 Hz (0.05-999.99 Hz) | | Accuracy | +/-0.05% + 1 digit | | Sensing Distance | 2-20 (50-500 mm) | | Sampling Rate | 0.8 second (over 60 RPM) | | Memory | Automatically stores Maximum (UP), Minimum (dn), last value (LA) and up to 96 readings for review. Maximum speed for reading storage is every 0.8 seconds | | Power | 3 x 1.5V AAA battery | | Enclosure | ABS plastic housing | | Dimensions | 6.1 x 2.8 x 1.4 (155 x 70 x 35 mm) | | Weight | 0.4 lb (181 g) | | Certifications | CE, RoHS | | Warranty | 1 Year |
