Compact A2103-LSR-K Advent Professional Optical / Contact Handheld Tachometer, Optical Range 50 - 2000mm



Price: $ 695.00

Compact A2103-LSR-K Advent Professional Handheld Tachometer

Advent professional Optical/Contact Tachometers



The Compact A2103-LSR-K Advent Professional Handheld Tachometer is a very versatile multipurpose Tachometer with both Optical or Contact rpm, linear rate, distance ranges, a additional remote Laser Optical Sensor for rpm monitoring in difficult access applications, the unique inverting display, allows easy reading when in a limited access situation, an optical range of up to 2 metres, the optical performance is second to none, the time and Count modes, data capture and very fast response modes, 0.1 seconds update time, traceable certificates supplied as standard.

Signal Input features:5v Pulse Signal is via the 3.5mm stereo Jack socket on the rear of housing which can be used with one of our remote optical sensors, alternatively it can be used to measure any pulse rate signal up to 5v pp.

Contact Measurement:Measurement units: Revolutions, Metres, Feet, Yards per Minute and per Second or length in 0/1 metres units Time interval or reciprocal speed for very slow rates in seconds/revolutions,Count mode: Counts distance or revolutions.

Maximum speed with Contact Adaptor:Governed by upper speed limit of bearings and is affected by measurement duration, typically 50,000 rpm for 10 Seconds. Maximum linear rate is typically 1,500 metres/minute or 4,500 feet/minute.


line

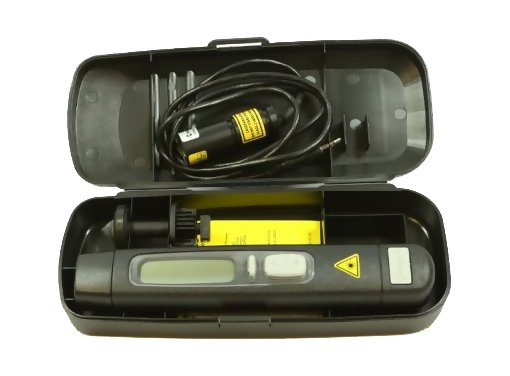

Kit Contents
line

  • Compact A2103-LSR-K Advent Professional Handheld Tachometer
  • MiniVLS 311/001 Plain Housing and 3.5mm Jack Plug
  • Reflective Tape
  • Certificate of Calibration
  • Instruction Manual
  • Carrying Case


line
Features
line

  • Maximum: Captures maximum speed in 0.1 seconds
  • Minimum: Captures minimum speed in 0.1 seconds
  • Time-base: 0.1 seconds in Capture mode
  • Average: Averages over last 8 readings


line
Specifications
line

Laser(internal & remote)
Optical range50 - 2000mm
Angle+/- 80
Light Source1mw Laser 635nm class II
Speed range3 - 99,999 rpm or rps equiv
Resolutionmax. 0.001 (autorange)
Accuracy0.05% +/- 1 digit
Update0.8 sec
Capture mode0.1 sec
Count0-99999 revs or length in linear
Time interval0-99999 secs (autoranging)
MemoryHolds last reading 1 minute
On target ind.Yes
Low battery ind.Yes
Signal input3.5mm socket for ext. Optical Sensor
Remote SensorMiniLaser with 1 metre cable supplied
Power4 x AAA batteries-supplied
Contact AdapterSupplied
CarrycaseSupplied
Reflective tapePack of tape supplied


line
Downloads
line

Compact A2103-LSR-K Advent Professional Handheld Tachometer - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Compact A2103-LSR-K Advent Professional Optical / Contact Handheld Tachometer, Optical Range 50 - 2000mm $695.00
Accessories Price
205T - Reflective Tape 1 in x 7 in $2.00
205TS - Reflective Tab Sheet 35 1/2 in x 1/2 in $5.00
A2100/01 - Spare Contact Adapter for Compact Tachometers $99.00
